Product Details
Drive type
Single - Phase Half - Bridge
Suspended power supply (V)
650
Low end power supply (V)
10-20
input logic
HIN,LIN
Output current (A)
2.5/2.5
Low end power supply undervoltage protection (V)
8.7/8.4
High end power supply undervoltage protection (V)
8.8/8.5
Blocking protection
have
enable
have
Open delay LO-HO
180/180
Extension time LO-HO
140/140
Rise time LO-HO
20/20
Descent time LO-HO
15/15
Dead time (nS)
40
thoroughfare
2
package
SOP16/SOW16
- High-end floating bootstrap power supply design, with a withstand voltage of up to 650V
- maximum frequency support of 500KHz
- low-end VCC voltage range of 10V - 20V
- output current capability of IO+/– 2.5A/2.5A
- built-in dead-time control circuit
- built-in latch function, completely eliminating simultaneous conduction of upper and lower tube outputs
- HIN input channel high-level effective, controlling high-end HO output
- LIN input channel high-level effective, controlling low-end LO output
- quiescent current less than 180uA
- package form: SOW16 and SOP16
- lead-free and halogen-free, compliant with ROHS standards.
- Sine wave inverter
- Inverter pump controller
- Square wave inverter
- Electric vehicle controller
- Brushless motor driver

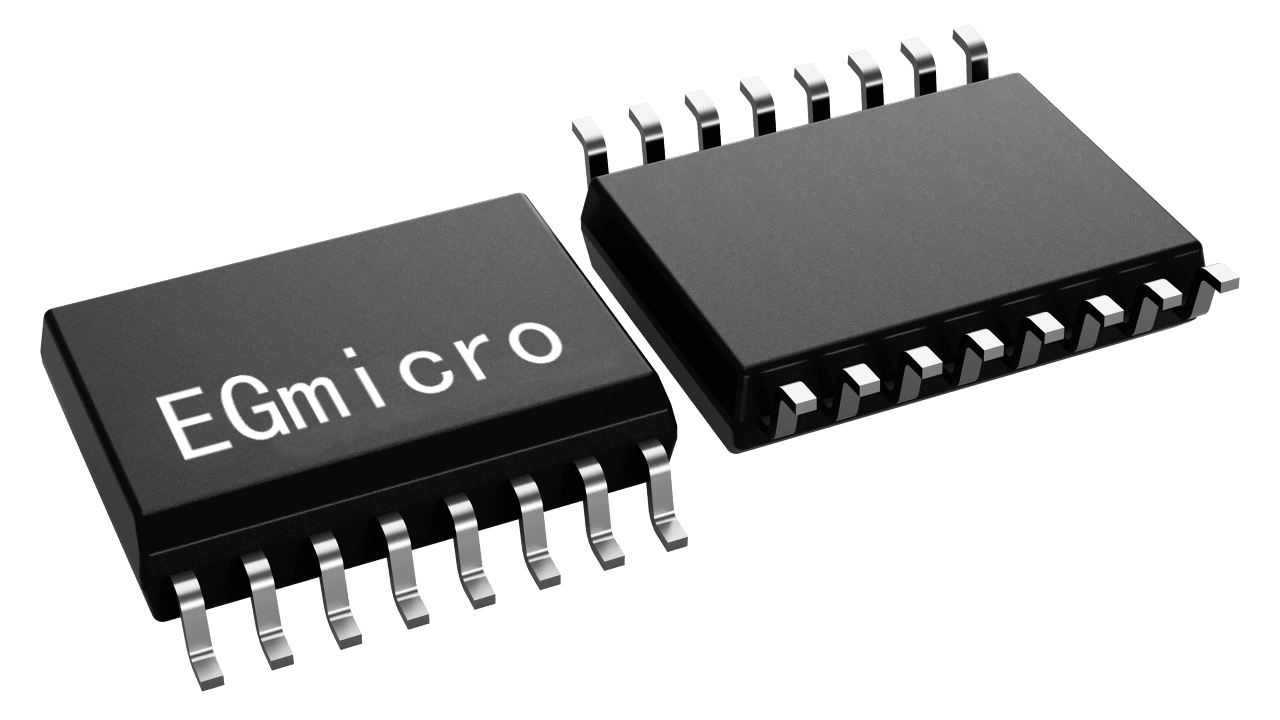

EG2110 is a cost-effective high-power MOSFET/IGBT gate driver integrating logic processing, dead-time control, interlock, level shifting and output circuits. Designed for brushless motor controllers, it supports 650V high-side voltage and 10V-20V Vcc with 180μA standby current. Features 250K pull-down resistors on HIN/LIN to turn off MOSFETs when inputs float, and interlock to prevent cross-conduction. Output capability: IO+/-2.5A/2.5A in SOP16/SOW16 packages.
