Product Details
starting voltage
9.5V
turn off voltage
7.8V
starting current
80uA
Input voltage range
10-25V
switching frequency
0-300K,外围可调
output voltage accuracy
1.5%
Built in power transistor
not have

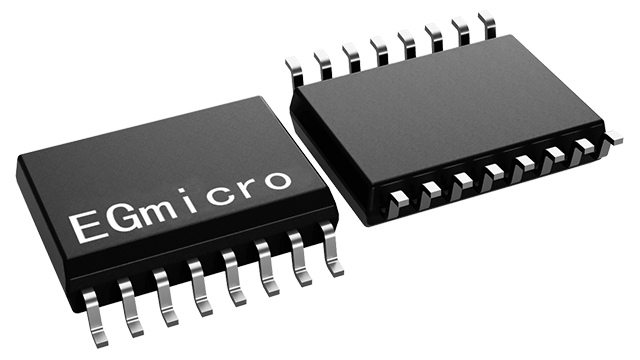

package
SSOP16
- VCC input voltage range 10V-25V
- The maximum voltage of the floating voltage is 80V
- the high-efficiency synchronous rectification scheme can handle currents of over 20A
- External power transistor MOS transistor with built-in sampling protection
- Adjustable dead zone
- Adjustable frequency
- Output short circuit locking protection
- Built in temperature protection
- Cycle by cycle current limiting
- Flexible and adjustable output voltage
- Few peripheral components
- SSOP16
- PC power supply
- Fast charging power supply
- Non isolated DC-DC
- Inverter system
- Industrial control system
EG1135 is a wide voltage range step-down synchronous rectification DC-DC power management chip, which integrates functions such as enable switch control, reference power supply, error amplifier, overheating protection, current limiting protection, short circuit protection, etc. It is very suitable for wide voltage input step-down high current output use. EG1135 with enable control can easily achieve shutdown function, with high cost-effectiveness.
