Product Details
starting voltage
4.6V
turn off voltage
3.8V
starting current
50uA
Input voltage range
4-600V
switching frequency
The operating frequency can be set externally in the range of 0-300K.
output voltage accuracy
1.5%
Built in power transistor
not have

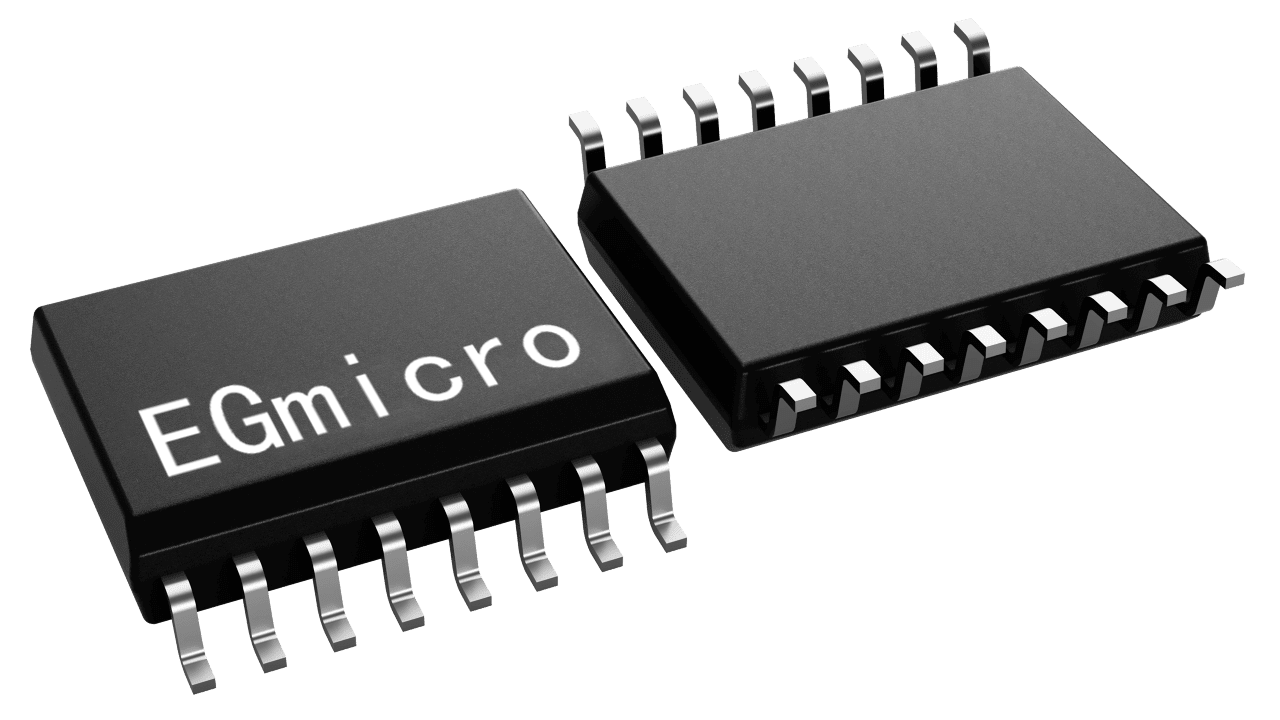

package
SOP16
- Step-down synchronous rectification scheme, supporting high-voltage and high-current solutions
- The operating frequency (0 - 300KHz) can be set by an external capacitor
- The turn-on and turn-off voltages can be flexibly adjusted by an external resistor at pin 2 (EN)
- It has UVLO under-voltage lockout function
- The turn-on voltage at the Vcc pin is 4.6V, and the turn-off voltage is 3.8V
- Cycle-by-cycle current limiting control and output short-circuit hiccup protection are provided
- Package form: SOP16
- LED screens
- Electric bicycle converters
- High-voltage analog/digital systems
- Industrial control systems
- Telecommunication power supply systems
- Ethernet PoE
- Portable mobile devices
- Inverter systems
It is a high-voltage and high-current step-down synchronous rectification DC-DC power management chip. It integrates functions such as a reference power supply, oscillator, error amplifier, current limiting protection, short-circuit protection, and half-bridge drive internally. It is suitable for applications in high-current scenarios, especially for the 5V output scenario. It supports the step-down synchronous rectification scheme. The operating frequency of 0 - 300KHz can be set by an external capacitor. It has functions such as UVLO (Under Voltage Lock Out) under-voltage lockout, cycle-by-cycle current limiting control, and output short-circuit hiccup protection. The package form is SOP16.
