Product Details
Drive type
Digital Power Drive
Suspended power supply (V)
600
Low end power supply (V)
10-20
input logic
PWMIN
Output current (A)
2/2.5
Low end power supply undervoltage protection (V)
8.5/7.9
High end power supply undervoltage protection (V)
7.2/6.9
Blocking protection
have
enable
have
Open delay LO-HO
300/300
Extension time LO-HO
170/170
Rise time LO-HO
120/120
Descent time LO-HO
80/100
Dead time (nS)
-
thoroughfare
2
package
SOP16
- High-end floating bootstrap power supply design, with a withstand voltage of up to 600V
- compatible with 5V and 3.3V input voltages
- maximum frequency support of 500KHz
- low-end VCC voltage range of 10V - 20V
- output current capability of IO+/– 2A/2.5A
- peak current protection for high-side MOSFET on a per-cycle basis
- peak current protection for low-side MOSFET on a per-cycle basis
- PWM single input internally generates two symmetrical half-bridge and push-pull PWM outputs
- built-in latch function, completely eliminating simultaneous conduction of upper and lower tube outputs
- built-in 5V linear power supply output
- built-in rail-to-rail op-amp
- SD per-cycle protection function
- undervoltage protection for low-end power supply VCC
- undervoltage protection for high-end power supply VB
- package form: SOP16.
- Industrial half-bridge power supply
- Induction cooker
- Automotive charger
- Inverter power supply
- Telecommunication power system
- Isolated DCDC

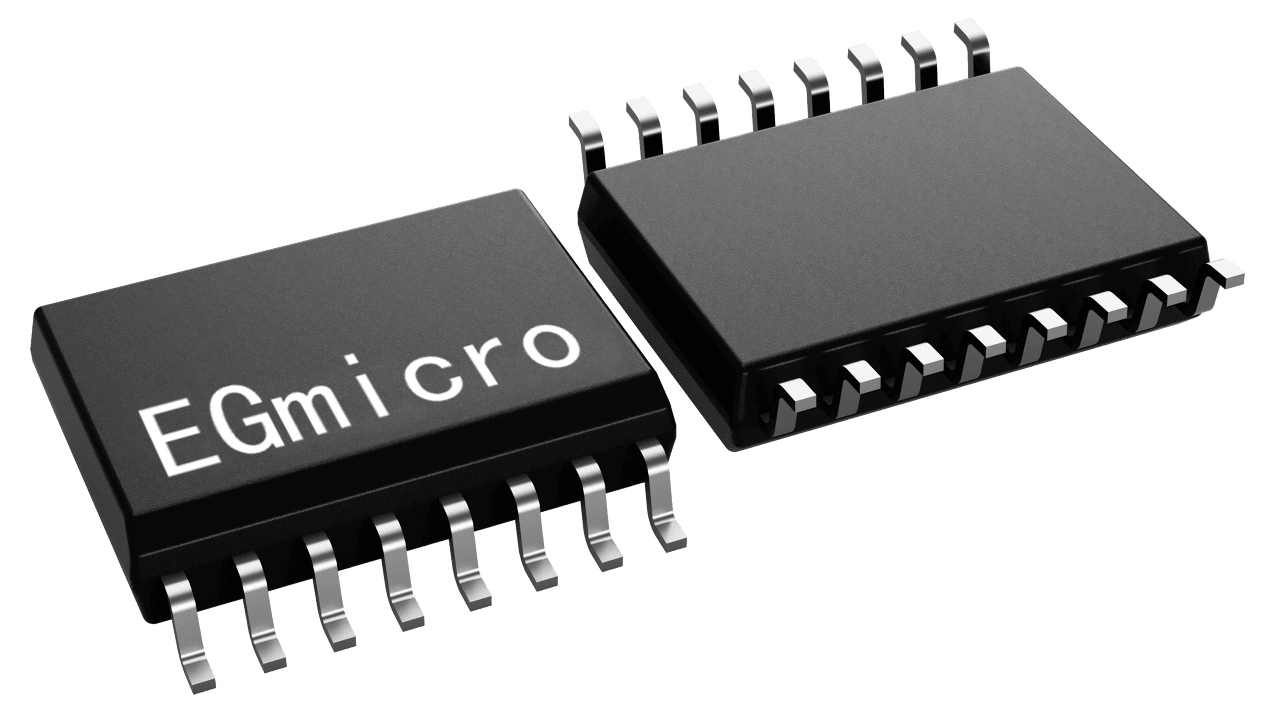

EG1168 is an economical half-bridge/push-pull driver with integrated 5V LDO. Supports 600V high-side, 10V-20V Vcc, and <1.5mA standby current. Features pull-down resistors, interlock, and single PWM input generating symmetrical half-bridge/push-pull outputs. 2A/2.5A output current for digital power applications in SOP16.
