Product Details
starting voltage
8.5V
turn off voltage
7.8V
starting current
Built in high voltage start
Input voltage range
10-200V
switching frequency
frequency jitter,110KHz
output voltage accuracy
1.5%
Built in power transistor
have

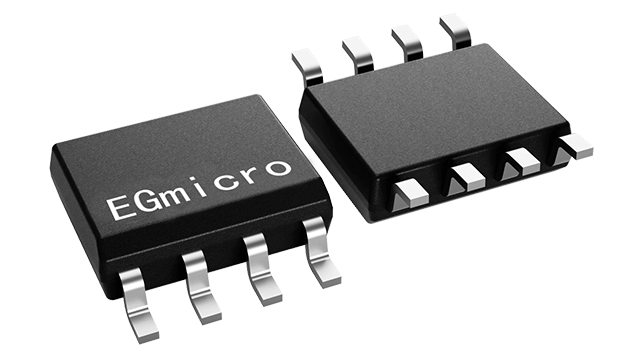

package
ESOP8
- Built in 200V2A power MOS transistor
- Wide voltage input range of 10V to 200V
- maximum continuous output current of 1.5A, short-term output can reach 2A
- enable control
- TikTok function
- Few peripheral components
- Output short-circuit hiccup protection
- Temperature protection
- Cycle by cycle current limiting
- Flexible and adjustable output voltage
- ESOP8
- Instrument power supply
- Fast charging power supply
- Electric vehicle controller
- Inverter system
- Industrial control system
- Balance car controller
EG11752 is a wide voltage range step-down DC-DC power management chip that integrates high-voltage start-up, enable control, reference power supply, error amplifier, overheat protection, current limiting protection, short circuit protection, and other functions. It is very suitable for wide voltage input step-down use. EG11752 has fewer peripheral components and offers high cost-effectiveness.
