Product Details
starting voltage
14V
turn off voltage
9V
starting current
18uA
static current
2.3mA
switching frequency
Jitter frequency peripheral can be set
drive current
-
output power
medium power

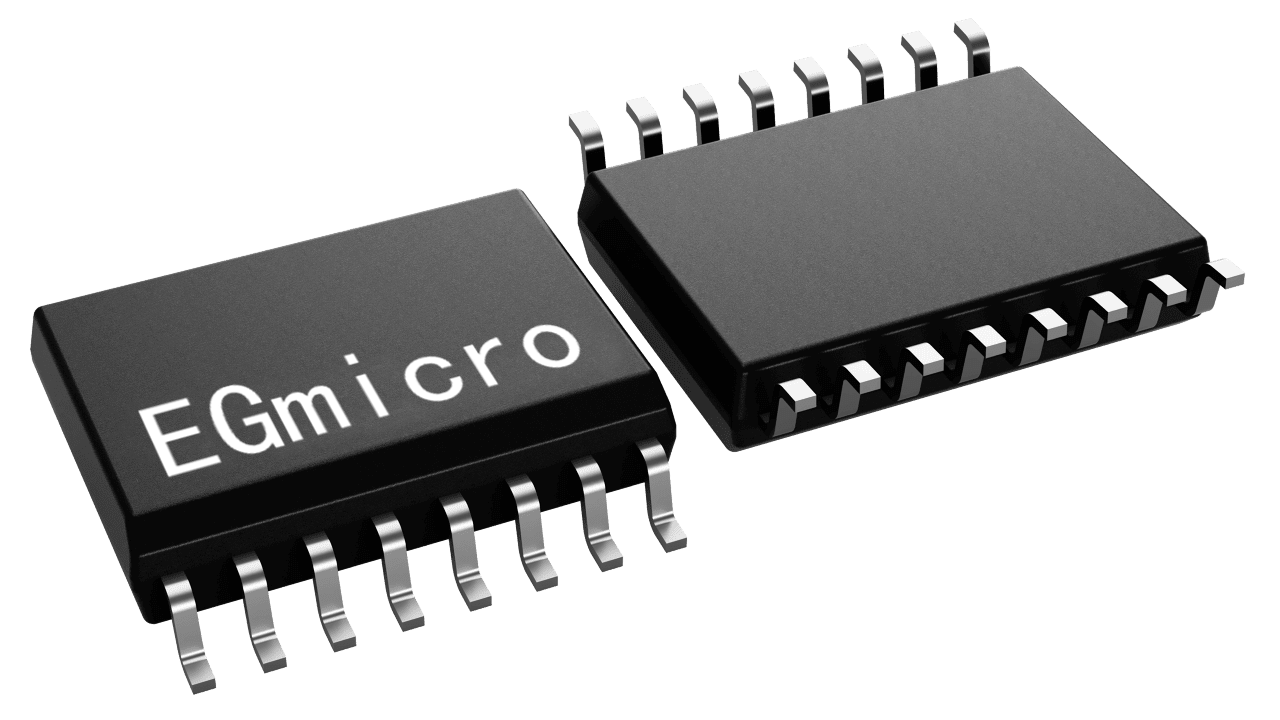

package
SOP16
- Integrated 600V half bridge driver
- Constant current control
- Excellent EMI characteristics
- Few peripheral components
- External soft start
- VIN undervoltage protection
- Optocoupler open circuit protection
- Maximum duty cycle of 49%
- Current mode control
- External resistors can be set with PWM frequency, up to 500KHZ
- Periodic current limitation
- HO, LO output current capability IO+/-0.8A/1A
- Built in cutting-edge blanking
- Low starting current
- Packaging form SOP16
- LED screen
- Lithium battery charger
- Lead acid battery charger
- Adapter
- Motor drive power supply
It is a cost-effective integrated 600V half bridge drive current mode PWM controller, suitable for medium and high power dual tube forward and dual tube flyback power supply solutions. Built in frequency jitter function, with excellent EMI characteristics. Built in comprehensive protection functions: VCC undervoltage protection (UVLO), cycle by cycle current limitation, overload protection, soft start, etc
