Product Details
Drive type
Multiphase Half - Bridge
Suspended power supply (V)
650
Low end power supply (V)
10-25
input logic
HIN,LIN
Output current (A)
0.2/0.35
Low end power supply undervoltage protection (V)
9.0/8.0
High end power supply undervoltage protection (V)
9.0/8.0
Blocking protection
have
enable
have
Open delay LO-HO
450/450
Extension time LO-HO
380/380
Rise time LO-HO
125/125
Descent time LO-HO
50/50
Dead time (nS)
300
thoroughfare
6

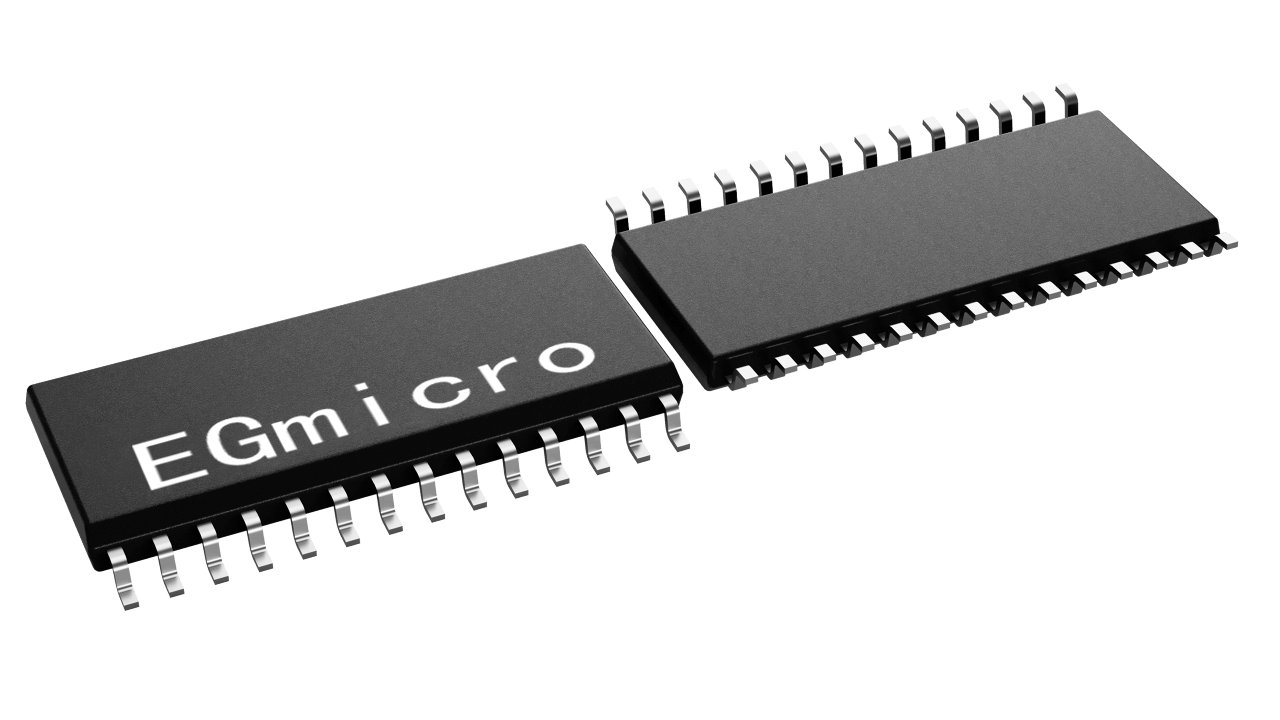

package
SOP28
- High-end floating bootstrap power supply design, with a withstand voltage of up to 650V
- compatible with 5V or 3.3V input voltage
- output current capability of +0.2A/-0.35A
- undervoltage protection
- enable control
- input and output are in phase
- externally settable clear time
- high and low-end channels matched
- overcurrent protection to shut down six-channel outputs
- integrated with three independent half-bridge drivers
- built-in dead-time control circuit
- built-in latch function, completely eliminating simultaneous conduction of upper and lower tube outputs
- package form: SOP28
- lead-free and halogen-free, compliant with ROHS standards.
- Three-phase motor drive
- DC - AC inverter
- Switching power supply
- Air conditioner, refrigerator, washing machine
EG21364 is a three-phase gate drive circuit used for high-voltage, high-speed power devices such as N-type power MOSFETs and IGBTs, mainly consisting of three independent half bridge drive circuits. Built in dead time ensures that the upper and lower bridge arms of the power transistor do not conduct simultaneously. Built in input signal filtering to prevent noise interference. Provide external enable control to simultaneously turn off six channel outputs. In addition, it also has undervoltage protection and overcurrent protection functions, and immediately shuts off the six channel output in case of abnormalities.
