Product Details
Drive type
Multiphase Half - Bridge
Suspended power supply (V)
600
Low end power supply (V)
10-20
input logic
IN,`SD
Output current (A)
0.3/0.6
Low end power supply undervoltage protection (V)
8.4/7.9
High end power supply undervoltage protection (V)
7.8/7.3
Blocking protection
have
enable
have
Open delay LO-HO
700/700
Extension time LO-HO
170/170
Rise time LO-HO
70/70
Descent time LO-HO
35/35
Dead time (nS)
530
thoroughfare
4

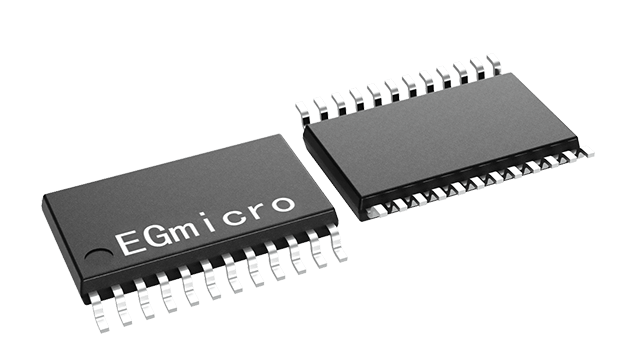

package
SSOP24
- High-end floating bootstrap power supply design, with a withstand voltage of up to 600V
- with two independent internal comparators
- compatible with 5V and 3.3V input voltages
- maximum frequency support of 500KHz
- undervoltage shutdown output on VCC and VB
- output current capability of IO+/– 0.3A/0.6A
- SD low-level disables HO and LO outputs
- overcurrent protection function, high-level disables HO and LO outputs
- minimal external components
- package form: SSOP24 and SSOP16
- lead-free and halogen-free, compliant with ROHS standards.
- Inverter power supply
- Electric vehicle controller
- Inverter pump controller
- Brushless motor driver
- Switching power supply
It is a dedicated full bridge driver chip with two comparator functions, which integrates logic signal input processing circuit, SD control circuit, undervoltage shutdown circuit, lockout circuit, level shift circuit, pulse filtering circuit, and output drive circuit. High end working voltage can reach 600V, low-end VCC power supply voltage range is 10V-20V, low static power consumption, with locking function, output current capability I0+/-0.3/0.6A
