Product Details
Drive type
Low - Side Half - Bridge
Suspended power supply (V)
--
Low end power supply (V)
--
input logic
IN (logic input)
Output current (A)
4/4
Low end power supply undervoltage protection (V)
--
High end power supply undervoltage protection (V)
--
Blocking protection
--
enable
Yes
Open delay LO-HO
80
Extension time LO-HO
60
Rise time LO-HO
40
Descent time LO-HO
20
Dead time (nS)
--
thoroughfare
1
package
SOT23-5
- Dedicated gate driver ic
- Available in a SOT23-5 package
- Refer to the datasheet for complete operating limits and electrical characteristics
- MOSFET and IGBT gate-drive circuits
- Motor drives
- Power converters and inverters

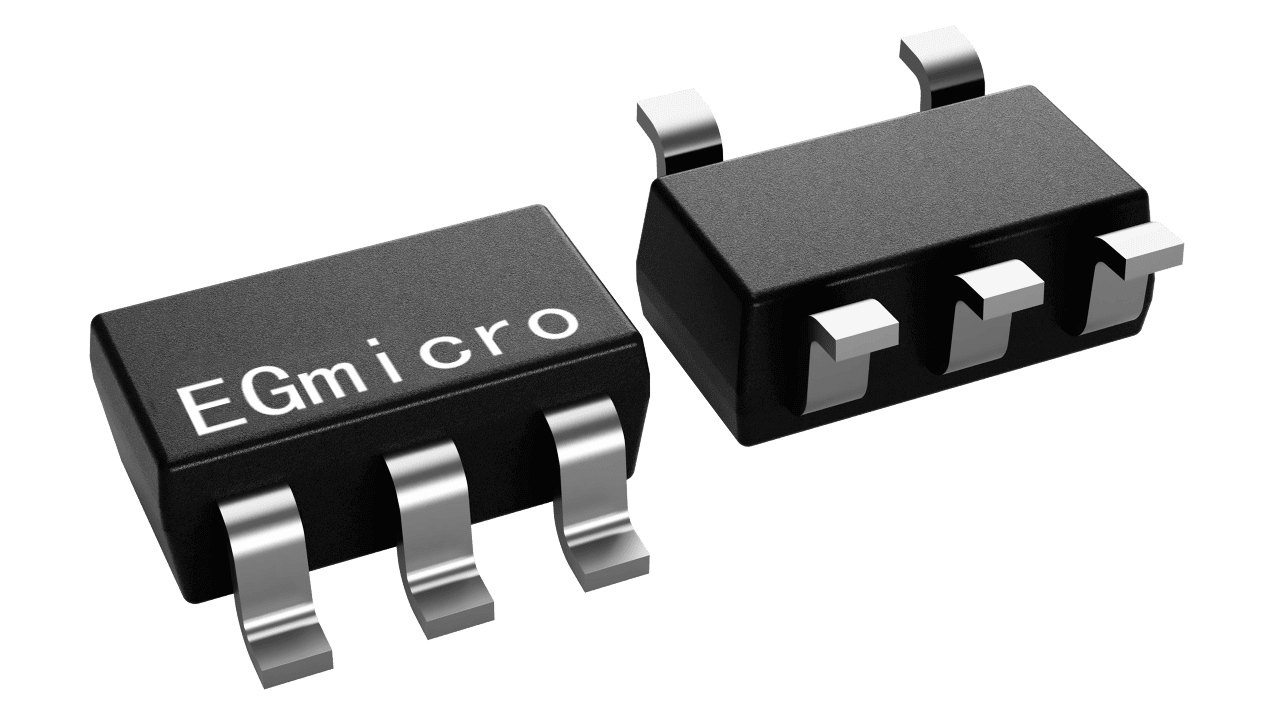

EG27519 is a gate driver ic supplied in a SOT23-5 package. Refer to the datasheet for electrical characteristics and application information.
