Product Details
starting voltage
-
turn off voltage
-
starting current
External auxiliary power supply
Input voltage range
-
switching frequency
The maximum operating frequency is 100KHz.
output voltage accuracy
-
Built in power transistor
not have
package
SSOP24
- Pure digital algorithm current mode control, no external ramp compensation is required
- Cycle-by-cycle current limiting
- Fast line and load transient response
- Modulation methods: PWM, dual-mode COT
- Output constant current control, can charge batteries, supports CV 0V output
- Supports automatic current sharing in parallel operation of multiple units
- The maximum PWM operating frequency is 100kHz
- Input over-voltage and under-voltage protection
- Output over-voltage and under-voltage protection
- Backflow prevention protection
- Supports long-term output short-circuit, controlled by pure algorithm without additional hardware
- Low power consumption at light load
- Supports 0 - 100% duty cycle modulation
- The drive impedance can be configured
- Intelligent PID temperature control
- Serial communication module for flexible system function expansion.
- DC-DC converters for new energy vehicles
- DC-DC converters for electric motorcycles
- MPPT controllers
- Portable mobile power supplies
- Industrial DC-DC power supplies

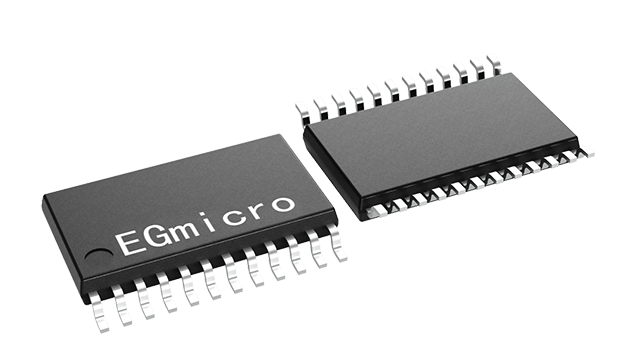

EG5101 is a high-performance synchronous step-down control chip based on digital algorithm current mode control. It is packaged in TSSOP-24 and is suitable for various applications that require efficient and stable step-down, such as battery chargers, electric vehicle converters, LED lamp drivers, industrial power supplies, etc. When used with Yijing Micro's high-voltage half-bridge driver chip, it can achieve applications with a maximum input of 600V. Through dual-mode modulation of PWM and COT, it can achieve wide-range output applications with a high input/output voltage ratio and low voltage drop.
