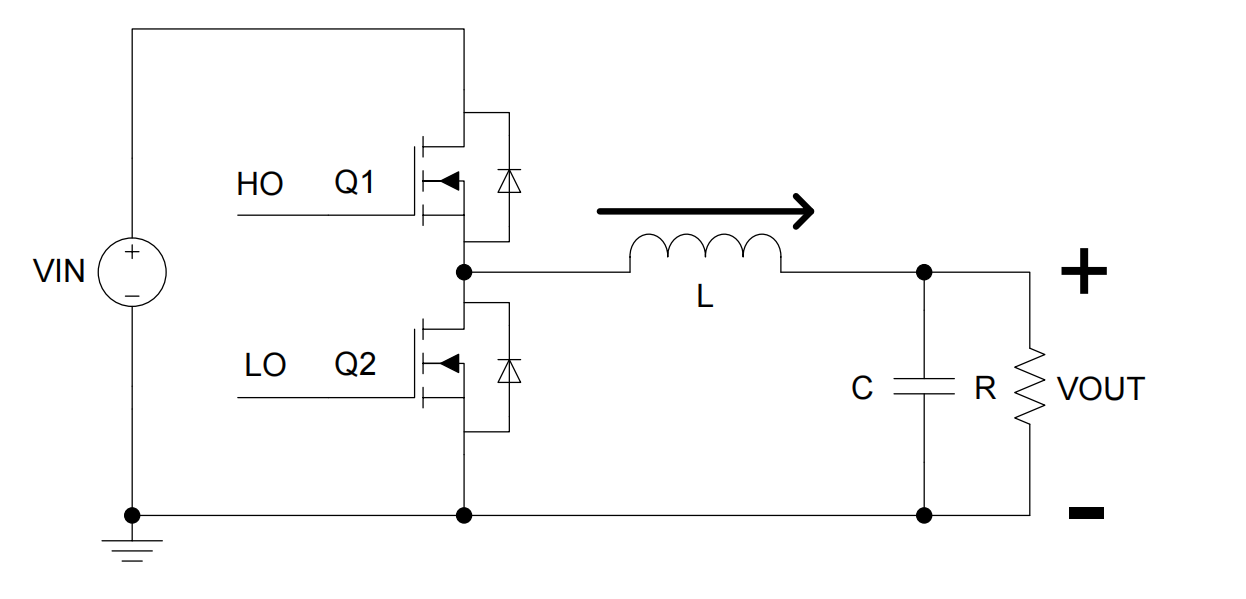

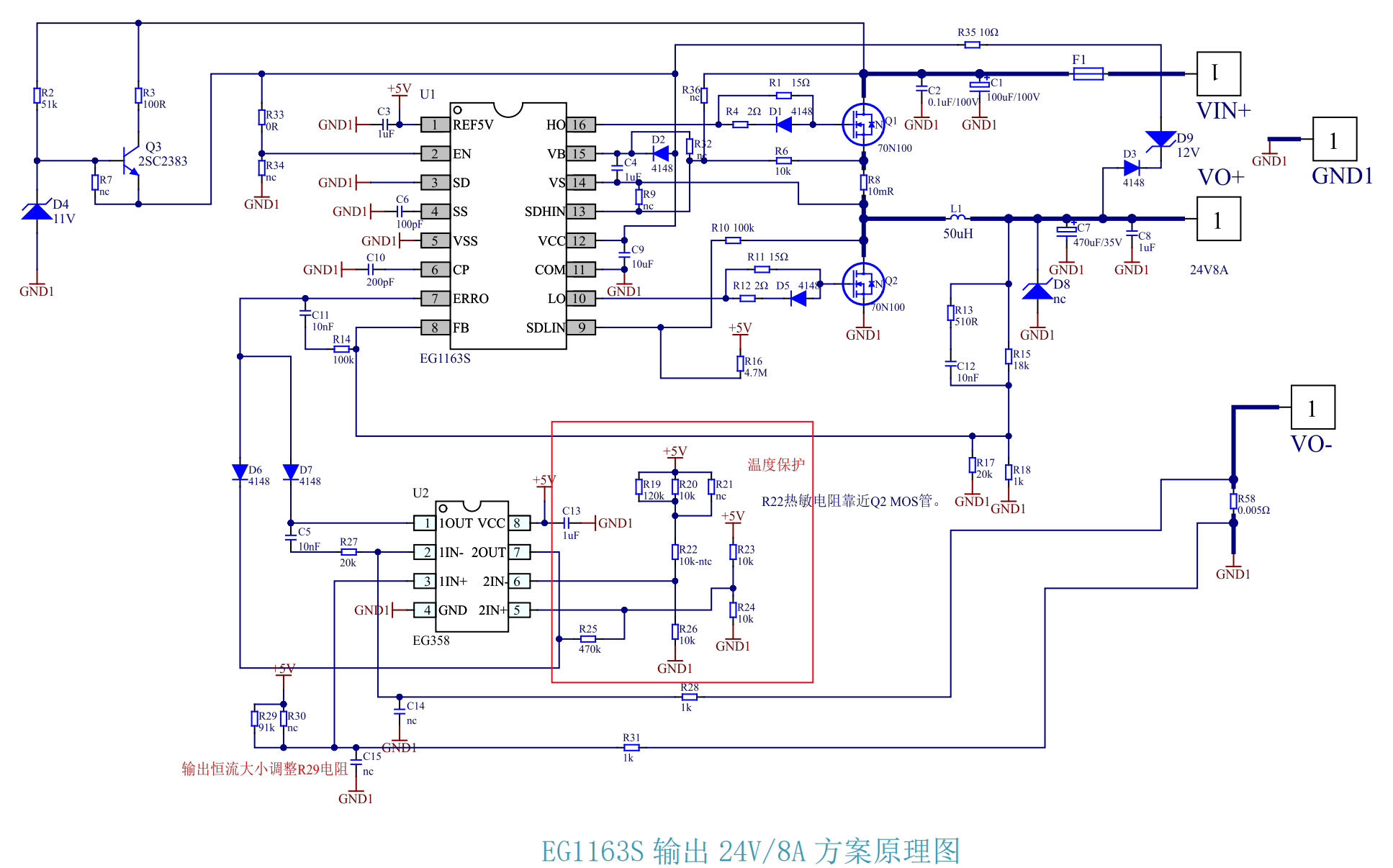

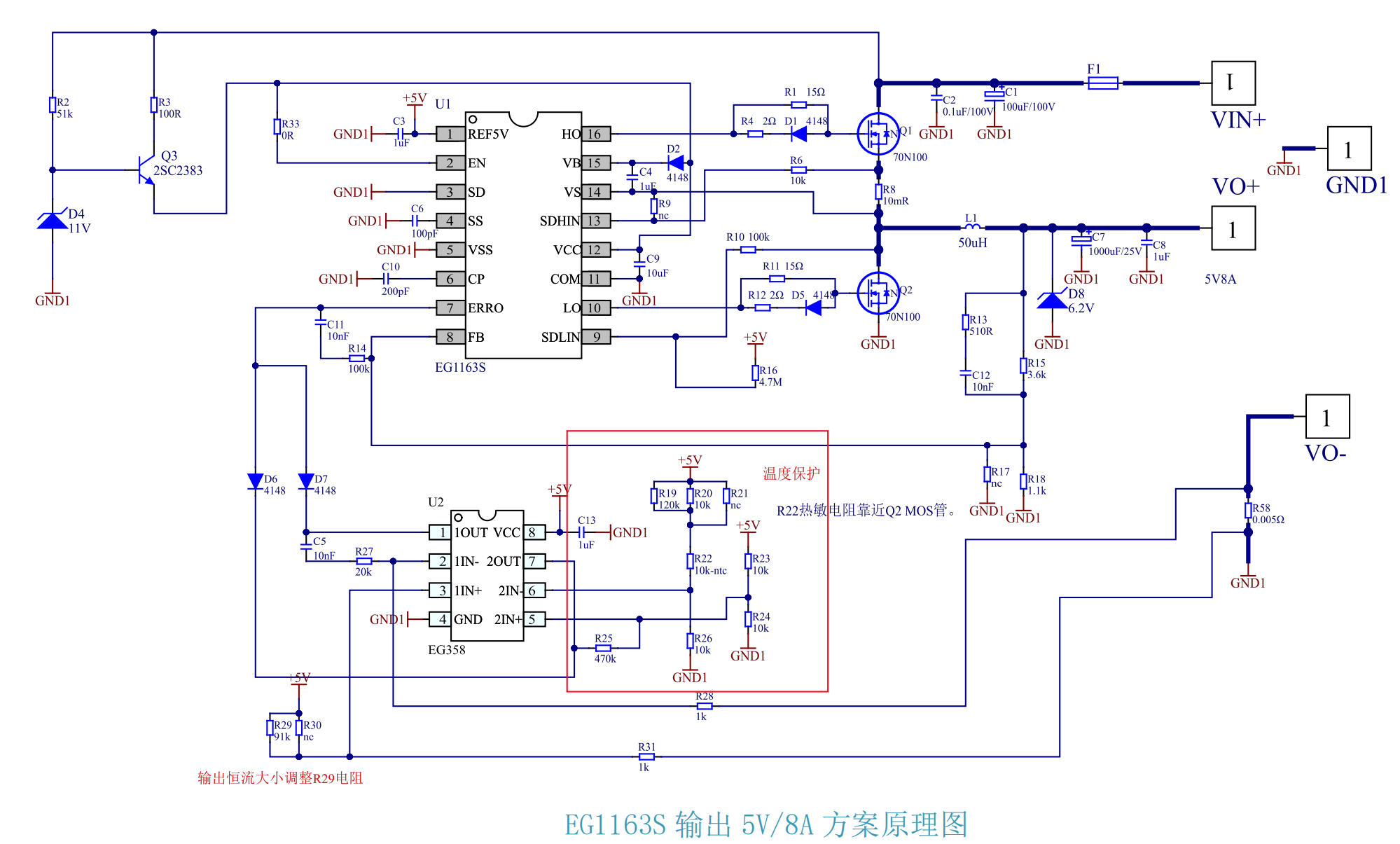

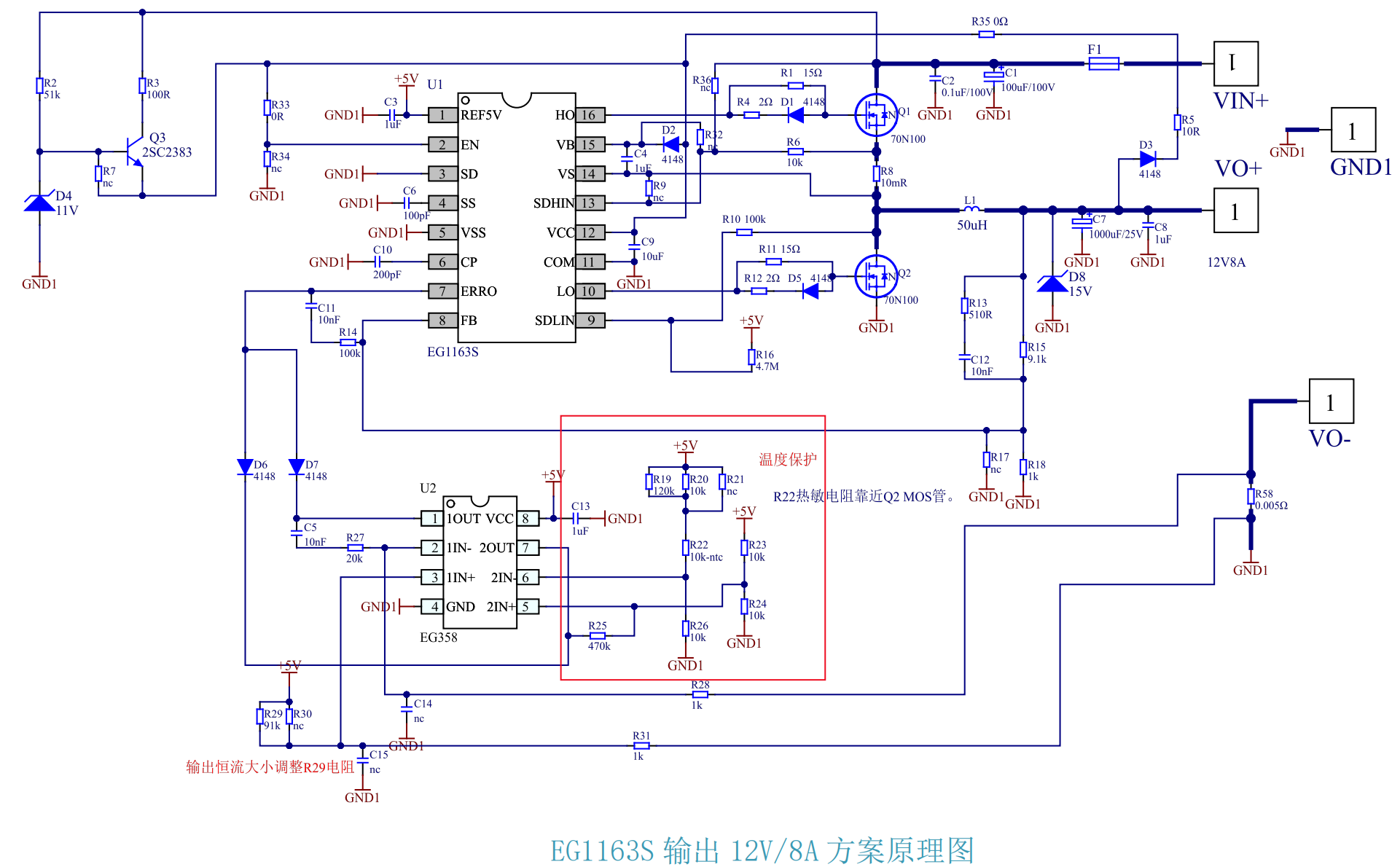

The solution is based on the EG1163S chip, using a non-isolated synchronous rectifier BUCK topology to achieve an output of 5V/12V/24V, 8A. The input voltage range varies with different output voltages (25V - 85V for 24V output, etc.), with a maximum efficiency of 97%. It features constant current control for output and supports battery charging.
Scheme characteristics
